規格及技術參數
| 型號 Catalog No. |
導線截面 (mm2)Section of conductor |
導體直徑 Diameter of conductor |
絕緣層外徑Outer diameter of insulating layer |

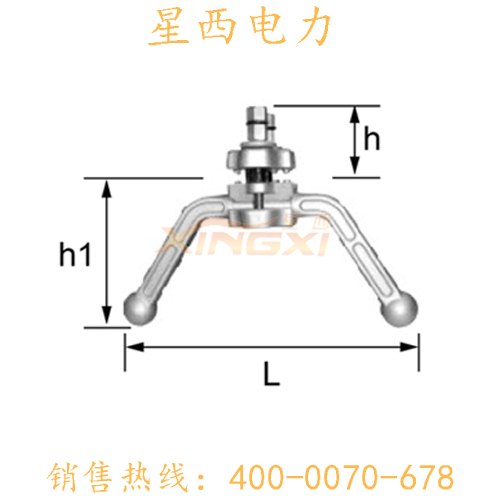

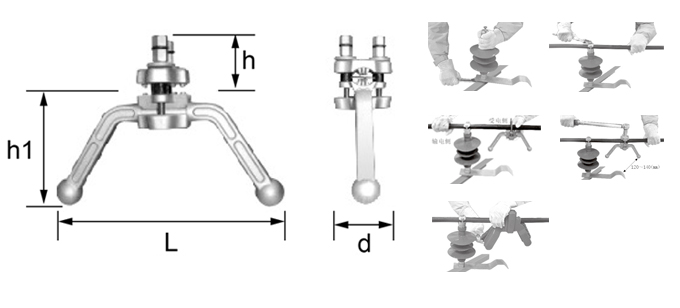

d | h | h1 | L | |
| 薄型Thin type | 普通型Common type | |||||||
| FHJ-70-120 | 70 | 10.5 | 15.0 | 17.8 | 73 | 60 | 115 | 240 |
| 95 | 11.6 | 16.0 | 19.6 | 73 | 60 | 115 | 240 | |
| 120 | 13.0 | 18.0 | 21.0 | 73 | 60 | 115 | 240 | |
| FHJ-150-240 | 150 | 14.6 | 19.6 | 22.6 | 73 | 60 | 115 | 240 |
| 185 | 16.2 | 21.2 | 24.2 | 73 | 60 | 115 | 240 | |
| 240 | 18.4 |
23.4 | 28.4 | 73. | 60 | 115 | 240 | |
■ 規格及技術參數 Specification
| 10kV架空絕緣導線 | 主要尺寸(mm) | ||||||
| 型號 | 導體面積(mm)2 | 絕緣層外徑 | 導體直徑 | d | h1 | h2 | L |
| FHJ-25～120A | 25 | 14.8 | 6.0 | 74 | 500 | 106 | 132 |
| 35 | 15.8 | 7.0 | 74 | 50 | 106 | 132 | |
| 50 | 17.1 | 8.3 | 74 | 50 | 106 | 132 | |
| 70 | 18.8 | 10.0 | 74 | 50 | 106 | 132 | |
| 95 | 20.4 | 11.6 | 74 | 50 | 106 | 132 | |
| 120 | 21.8 | 13.0 | 74 | 50 | 106 | 132 | |
| FHJ-150～240A | 150 | 23.4 | 14.6 | 74 | 50 | 106 | 132 |
| 185 | 25 | 16.2 | 74 | 50 | 106 | 132 | |
| 240 | 27.2 | 18.4 | 74 | 50 | 106 | 132 | |
| 10kV架空絕緣導線 | 主要尺寸(mm) | ||||||
| 型號 | 導體面積(mm)2 | 絕緣層外徑 | 導體直徑 | d | h1 | h2 | L |
| FHJ-25～120A | 25 | 18.2 | 6.0 | 74 | 50 | 106 | 132 |
| 35 | 19.2 | 7.0 | 74 | 50 | 106 | 132 | |
| 50 | 20.5 | 8.3 | 74 | 50 | 106 | 132 | |
| 70 | 22 | 10.0 | 74 | 50 | 106 | 132 | |
| 120 | 25.2 | 10.0 | 74 | 50 | 106 | 132 | |
| FHJ-150～240A | 150 | 26.7 | 11.6 | 74 | 50 | 106 | 132 |
| 185 | 28.3 | 28.3 | 74 | 50 | 106 | 132 | |
| 240 | 30.6 | 30.6 | 74 | 50 | 106 | 132 | |
