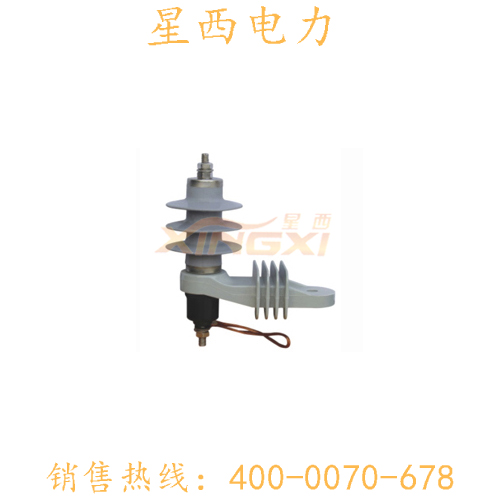

出口型避雷器

如果您有任何問題可以聯系我們！

聯系我們

電話：400-0070-678

詳細信息返回

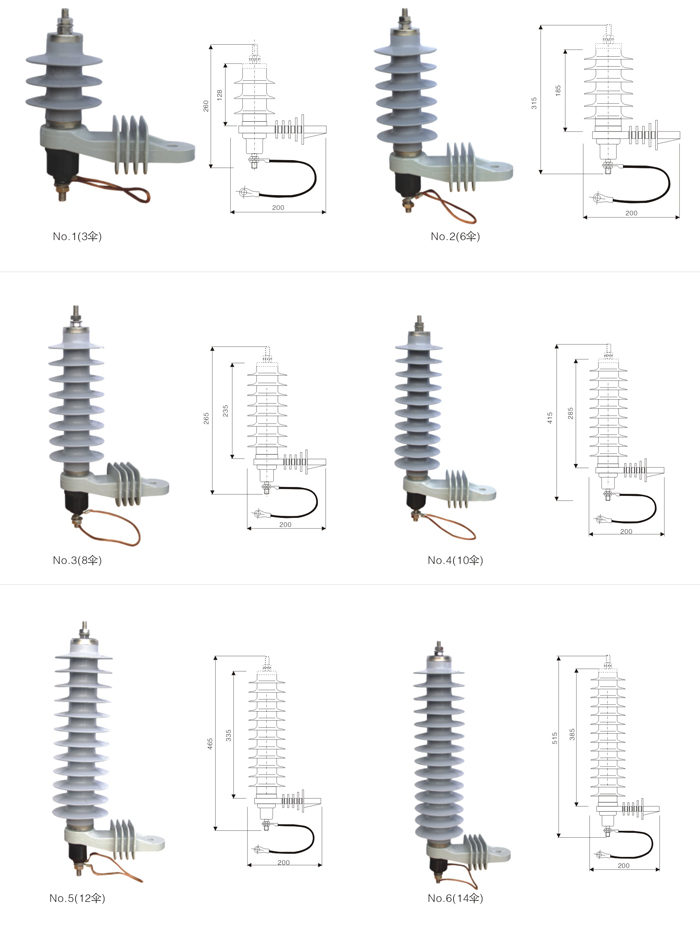

Type	Rated voltage (kV)	Continuous operating voltage (kV ≥)	1/4Steep current residual voltage (kV ≤)	8/20 Lightning current residual voltage (kV ≤)	30/60S witching current residual voltage (kV ≤)	2000μs Rectangular wave current impulse(A)	4/10 Current withstand discharge capacity (kA)	Number of photo and figure	Number of photo and figure
YH5W-3L	3	2.55	9.5	9	7.7	100	65	No.1	No.13
YH5W-6L	6	5.1	19	18	15.4			No.1	No.14
YH5W-9L	9	7.65	28.5	27	23.1			No.2	No.15
YH5W-12L	12	10.2	38	36	30.8			No.2	No.16
YH5W-15L	15	12.7	47.5	45	38.5			No.3	No.17
YH5W-18L	18	15.3	57	54	46.2			No.3	No.18
YH5W-21L	21	17	66.5	63	53.9			No.4	No.18
YH5W-24L	24	19.2	76	72	61.6			No.4	No.19
YH5W-27L	27	21.9	85.5	81	69.3			No.5	No.20
YH5W-30L	30	24.4	95	90	76.5			No.5	No.21
YH5W-33L	33	26.8	104.5	99	84.7			No.5	No.22
YH5W-36L	36	29	114	108	92.4			No.6	No.23
YH5W-42L	42	34.1	132.3	126	100.1			No.6	No.24
YH10W-3L	3	2.55	9.5	9	7.7	250	100	No.7	No.25
YH10W-6L	6	5.1	19	18	15.4			No.7	No.26
YH10W-9L	9	7.65	28.5	27	23.1			No.8	No.27
YH10W-12L	12	10.2	38	36	30.8			No.8	No.28
YH10W-15L	15	12.7	47.5	45	38.5			No.9	No.29
YH10W-18L	18	15.3	57	54	46.2			No.9	No.30
YH10W-21L	21	17	66.5	63	53.9			No.10	No.30
YH10W-24L	24	19.2	76	72	61.6			No.10	No.31
YH10W-27L	27	21.9	85.5	81	69.3			No.11	No.32
YH10W-30L	30	24.4	95	90	76.5			No.11	No.33
YH10W-33L	33	26.8	104.5	99	84.7			No.11	No.34
YH10W-36L	36	29	114	108	92.4			No.12	No.35
YH10W-42L	42	34.1	132.3	126	100.1			No.12	No.36
